4f Edge Detection — Learning the Vortex Phase Filter#

This notebook is the 4f extension notebook. It reuses the same 4f geometry from 4f_correlator.ipynb, but changes the task: instead of using a fixed matched filter for template matching, we learn a phase-only Fourier-plane filter for edge detection.

The optimizer is trained end-to-end on synthetic binary scenes, with no hard-coded analytic solution. The goal is for it to independently recover the spiral (vortex) phase filter \(\phi(x, y) = \arg(x + iy)\), the standard phase-only Fourier filter for isotropic edge enhancement.

Assumes you know#

  • the 4f optical path and sampling-matched focal length from 4f_correlator.ipynb,

  • why the Fourier plane is the natural place to apply a spatial-frequency filter, and

  • basic gradient-based optimization in JAX.

New ideas in this notebook#

  • generating a compact training set of random binary scenes and edge targets,

  • parameterizing a phase-only Fourier-plane mask with a bounded phase map,

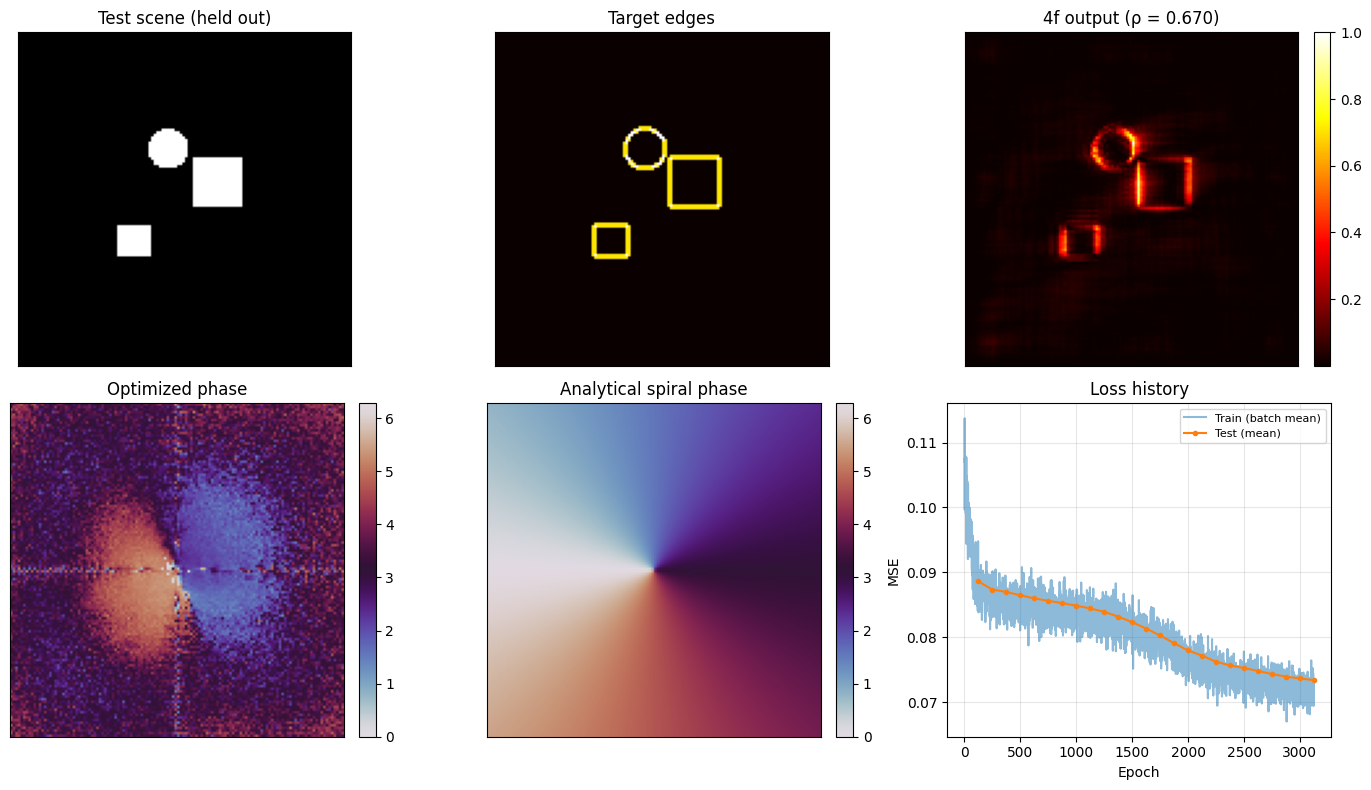

  • training the 4f system end-to-end on an image-processing objective, and

  • comparing the learned phase against the analytical vortex solution.

Relation to the 4f correlator notebook#

The optical layout is the same as in 4f_correlator.ipynb. This notebook does not repeat the full derivation of the 4f geometry; it focuses on what changes when the Fourier-plane element becomes trainable.

0 Imports#

We use JAX and Optax for differentiable optimization, together with the same fouriax optical components used in the correlator notebook.

from __future__ import annotations

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import optax

import fouriax as fx
%matplotlib inline

EXAMPLES_ROOT = Path.cwd() / "examples"
EXAMPLES_ARTIFACTS_DIR = EXAMPLES_ROOT / "artifacts"

1 Paths and Parameters#

Artifact outputs are written under artifacts/, including the sampled training-scene preview figure, optimization summary JSON, and final comparison plot.

The main parameters now control both the optical system and the learning problem: grid and wavelength settings define the 4f geometry, while epoch count, learning rate, and dataset sizes define the optimization workload.

ARTIFACTS_DIR = Path(str(EXAMPLES_ARTIFACTS_DIR))
PLOT_PATH = ARTIFACTS_DIR / "4f_edge_optimization.png"
SUMMARY_PATH = ARTIFACTS_DIR / "4f_edge_optimization_summary.json"

SEED = 0
WAVELENGTH_UM = 0.532
N_MEDIUM = 1.0
GRID_N = 128
GRID_DX_UM = 2.0
EPOCHS = 25
LR = 0.005
N_TRAIN_SCENES = 1000
N_TEST_SCENES = 100
BATCH_SIZE = 8
PLOT = True

2 Helper Functions#

The helper functions define the synthetic data model used for training and the analytical vortex phase used later for comparison. The 4f derivation itself is assumed from 4f_correlator.ipynb.

def random_scene(key: jax.Array, grid: fx.Grid) -> jnp.ndarray:
    noise = jax.random.normal(key, grid.shape)
    k = jnp.fft.fftn(noise, axes=(-2, -1))
    freq_x, freq_y = grid.frequency_grid()
    sigma_freq = 1.0 / (32.0 * grid.dx_um)
    lpf = jnp.exp(-(freq_x**2 + freq_y**2) / (2 * sigma_freq**2))
    smooth = jnp.real(jnp.fft.ifftn(k * lpf, axes=(-2, -1)))
    return (smooth > 0).astype(jnp.float32)


def edge_target(scene: jnp.ndarray) -> jnp.ndarray:
    padded = jnp.pad(scene, 1, mode="edge")
    gx = padded[1:-1, 2:] - padded[1:-1, :-2]
    gy = padded[2:, 1:-1] - padded[:-2, 1:-1]
    mag = jnp.sqrt(gx**2 + gy**2)
    return mag / jnp.maximum(jnp.max(mag), 1e-12)


def sampling_matched_f(grid: fx.Grid) -> float:
    return N_MEDIUM * grid.nx * grid.dx_um**2 / WAVELENGTH_UM


def analytical_spiral_phase(grid: fx.Grid) -> jnp.ndarray:
    x, y = grid.spatial_grid()
    return jnp.arctan2(y, x) + jnp.pi  # [0, 2π], centered on optical axis


def make_test_scene(grid: fx.Grid) -> jnp.ndarray:
    x, y = grid.spatial_grid()
    half = grid.nx * grid.dx_um / 2.0
    scene = jnp.zeros(grid.shape, dtype=jnp.float32)
    scene = scene + (
        (jnp.abs(x - 0.2 * half) < 0.15 * half) & (jnp.abs(y + 0.1 * half) < 0.15 * half)
    ).astype(jnp.float32)
    scene = scene + (
        (jnp.abs(x + 0.3 * half) < 0.1 * half) & (jnp.abs(y - 0.25 * half) < 0.1 * half)
    ).astype(jnp.float32)
    r = jnp.sqrt((x + 0.1 * half) ** 2 + (y + 0.3 * half) ** 2)
    scene = scene + (r < 0.12 * half).astype(jnp.float32)
    return jnp.clip(scene, 0.0, 1.0)


def measure_scenes(
    module: fx.OpticalModule,
    scenes: jnp.ndarray,
    grid: fx.Grid,
    spectrum: fx.Spectrum,
) -> jnp.ndarray:
    scenes = jnp.asarray(scenes, dtype=jnp.float32)
    if scenes.ndim == 2:
        scenes = scenes[None, :, :]
    field_in = fx.Field(
        data=scenes[:, None, :, :].astype(jnp.complex64),
        grid=grid,
        spectrum=spectrum,
    )
    return module.measure(field_in)[..., ::-1, ::-1]

3 Setup#

The optical layout is identical to the correlator notebook except for the Fourier-plane element: instead of a fixed complex matched filter, we insert a trainable phase-only mask.

The system follows the same geometry as the correlator notebook:

\[ \text{input} \;\xrightarrow{\text{prop}(f)}\; \text{Lens}_1 \;\xrightarrow{\text{prop}(f)}\; \underbrace{e^{\,i\,\phi(x,y)}}_{\text{phase filter}} \;\xrightarrow{\text{prop}(f)}\; \text{Lens}_2 \;\xrightarrow{\text{prop}(f)}\; \text{output} \]

The phase \(\phi\) is the only trainable parameter. We parameterise it as \(\phi = 2\pi\,\sigma(\theta)\) where \(\sigma\) is the sigmoid function and \(\theta\) is an unconstrained array optimised by Adam.

This bounded parameterization preserves the phase-only constraint while keeping the optimizer in an unconstrained parameter space.

grid = fx.Grid.from_extent(nx=GRID_N, ny=GRID_N, dx_um=GRID_DX_UM, dy_um=GRID_DX_UM)
spectrum = fx.Spectrum.from_scalar(WAVELENGTH_UM)
f_um = sampling_matched_f(grid)

prop = fx.ASMPropagator(
    distance_um=f_um,
    use_sampling_planner=False,
    warn_on_regime_mismatch=False,
)
lens = fx.ThinLens(focal_length_um=f_um)

def build_module(raw_phase: jnp.ndarray) -> fx.OpticalModule:
    phase = 2.0 * jnp.pi * jax.nn.sigmoid(raw_phase)
    return fx.OpticalModule(
        layers=(
            prop,
            lens,
            prop,
            fx.ComplexMask(phase_map_rad=phase),
            prop,
            lens,
            prop,
        ),
        sensor=fx.DetectorArray(detector_grid=grid),
    )

4 Training Data#

Each training example is simple enough to generate procedurally, while still containing edges at many orientations and locations.

Each training scene is generated by:

  1. Drawing white noise on the simulation grid.

  2. Low-pass filtering in \(k\)-space to produce smooth blobs.

  3. Thresholding at zero to obtain a binary scene.

The smoothing scale controls feature size; larger values yield bigger blobs with fewer, longer edges. The corresponding edge targets are computed via central finite differences (a discrete gradient magnitude).

This keeps the learning problem focused on a single question: can a trainable 4f Fourier-plane phase filter learn a rotationally symmetric edge detector from data alone?

key = jax.random.PRNGKey(SEED)
key, *train_keys = jax.random.split(key, N_TRAIN_SCENES + 1)
train_scenes = jnp.stack([random_scene(k, grid) for k in train_keys])
train_targets = jnp.stack([edge_target(s) for s in train_scenes])
key, *test_keys = jax.random.split(key, N_TEST_SCENES + 1)
test_scenes = jnp.stack([random_scene(k, grid) for k in test_keys])
test_targets = jnp.stack([edge_target(s) for s in test_scenes])

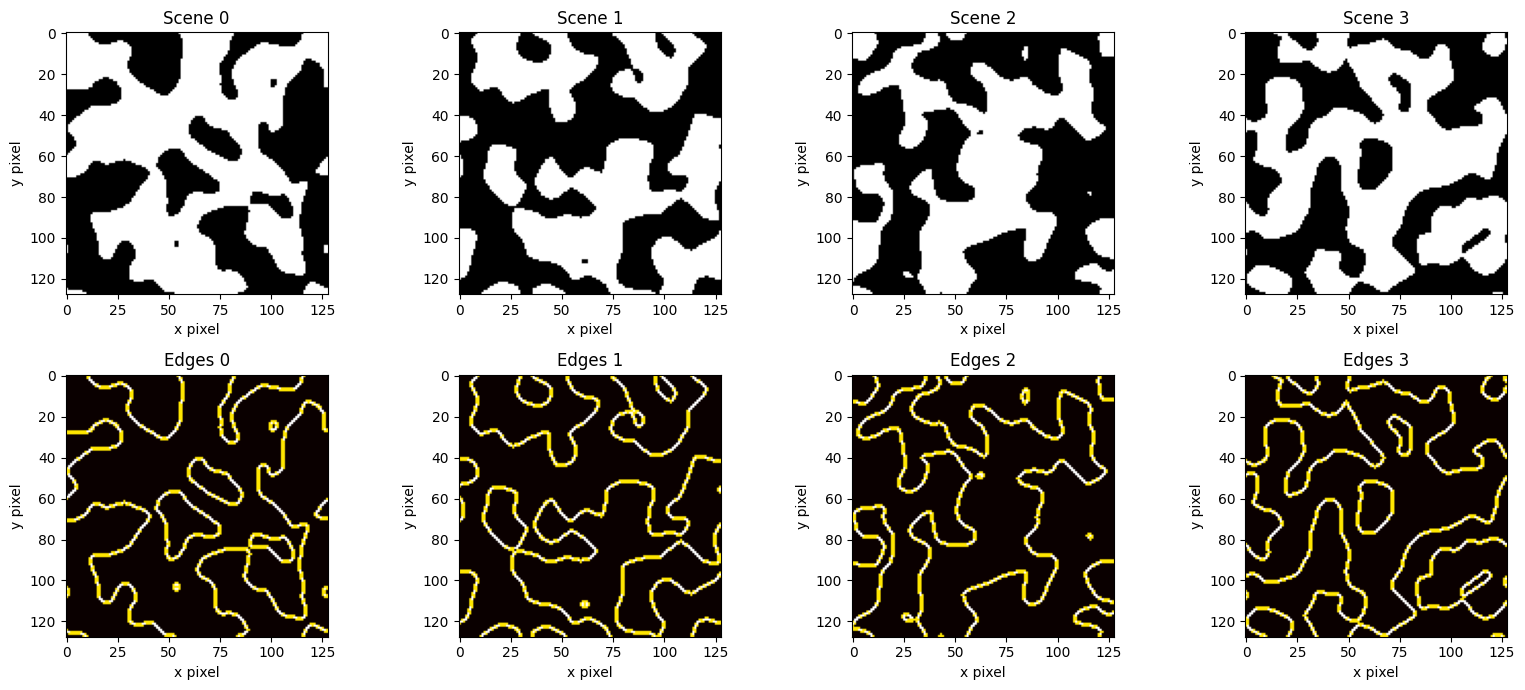

if PLOT:
    fig, axes = plt.subplots(2, 4, figsize=(16, 7))
    for col in range(4):
        axes[0, col].imshow(np.asarray(train_scenes[col]), cmap="gray")
        axes[0, col].set_title(f"Scene {col}")
        axes[1, col].imshow(np.asarray(train_targets[col]), cmap="hot")
        axes[1, col].set_title(f"Edges {col}")
    for ax in axes.flat:
        ax.set_xlabel("x pixel")
        ax.set_ylabel("y pixel")
    fig.tight_layout()
    save_path = ARTIFACTS_DIR / "4f_edge_optimization_scenes.png"
    fig.savefig(save_path)
    plt.show()
