Optical Neural Network (ONN) on MNIST — Phase-Mask Classifier#
This is a standalone advanced notebook. It trains a small diffractive optical network to classify
MNIST digits using alternating phase masks and free-space propagation layers, with the final intensity
sampled by a 2x5 detector grid whose 10 outputs serve as class logits.
Modeling assumptions#
grayscale MNIST images are injected as field amplitudes on the input plane,
each trainable layer is phase-only, with propagation between layers fixed by the chosen spacing, and
the final detector array is treated as a task-specific readout rather than a physically calibrated camera.
This example is best read as a compact differentiable-optics classifier demo, not as a benchmark for state-of-the-art digit recognition.
0 Imports#
We use JAX and Optax for training, Matplotlib for visual diagnostics, and fouriax optics modules for
the phase-mask stack, intermediate intensity monitors, and detector-array readout.
from __future__ import annotations
import urllib.request
from pathlib import Path
import jax
import jax.image
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import optax
from matplotlib.patches import Rectangle
import fouriax as fx
%matplotlib inline
EXAMPLES_ROOT = Path.cwd() / "examples"
EXAMPLES_DATA_DIR = EXAMPLES_ROOT / "data"
EXAMPLES_ARTIFACTS_DIR = EXAMPLES_ROOT / "artifacts"
1 Paths and Parameters#
The parameters control both the learning problem and the optical architecture: device selection, dataset size, number of phase layers, phase-mask downsampling, propagation distance, and optimization hyperparameters.
# Keep the MNIST cache under examples/data by default.
MNIST_URL = "https://storage.googleapis.com/tensorflow/tf-keras-datasets/mnist.npz"
DATA_PATH = Path(str(EXAMPLES_DATA_DIR / 'mnist.npz'))
ARTIFACTS_DIR = Path(str(EXAMPLES_ARTIFACTS_DIR))
PLOT_PATH = ARTIFACTS_DIR / "onn_mnist_field_evolution.png"
SUMMARY_PATH = ARTIFACTS_DIR / "onn_mnist_summary.json"
DEVICE = 'cpu'
SEED = 0
EPOCHS = 10
BATCH_SIZE = 64
LEARNING_RATE = 0.05
NUM_PHASE_LAYERS = 4
PHASE_MASK_DOWNSAMPLE = 4
NYQUIST_FACTOR = 1.0
DISTANCE_UM = 50.0
TRAIN_SAMPLES = 1000
TEST_SAMPLES = 100
PLOT = True
2 Helper Functions#
The helpers load and cache MNIST, then resize the digit images onto the optical working grid. This keeps the rest of the notebook focused on the optical model and training loop rather than on dataset plumbing.
def load_mnist(cache_path: Path) -> tuple[np.ndarray, np.ndarray, np.ndarray, np.ndarray]:
cache_path.parent.mkdir(parents=True, exist_ok=True)
if not cache_path.exists():
print(f"Downloading MNIST to {cache_path} ...")
urllib.request.urlretrieve(MNIST_URL, cache_path)
with np.load(cache_path) as data:
x_train = data["x_train"].astype(np.float32) / 255.0
y_train = data["y_train"].astype(np.int32)
x_test = data["x_test"].astype(np.float32) / 255.0
y_test = data["y_test"].astype(np.int32)
return x_train, y_train, x_test, y_test
def resize_images_to_grid(images: np.ndarray, grid: fx.Grid) -> np.ndarray:
arr = jnp.asarray(images, dtype=jnp.float32)[..., None]
resized = jax.image.resize(
arr,
shape=(arr.shape[0], grid.ny, grid.nx, 1),
method="linear",
)[..., 0]
return np.asarray(resized, dtype=np.float32)
3 Setup#
We choose a working grid, build a repeated block of
\[
\text{phase mask} \;\rightarrow\; \text{propagation},
\]

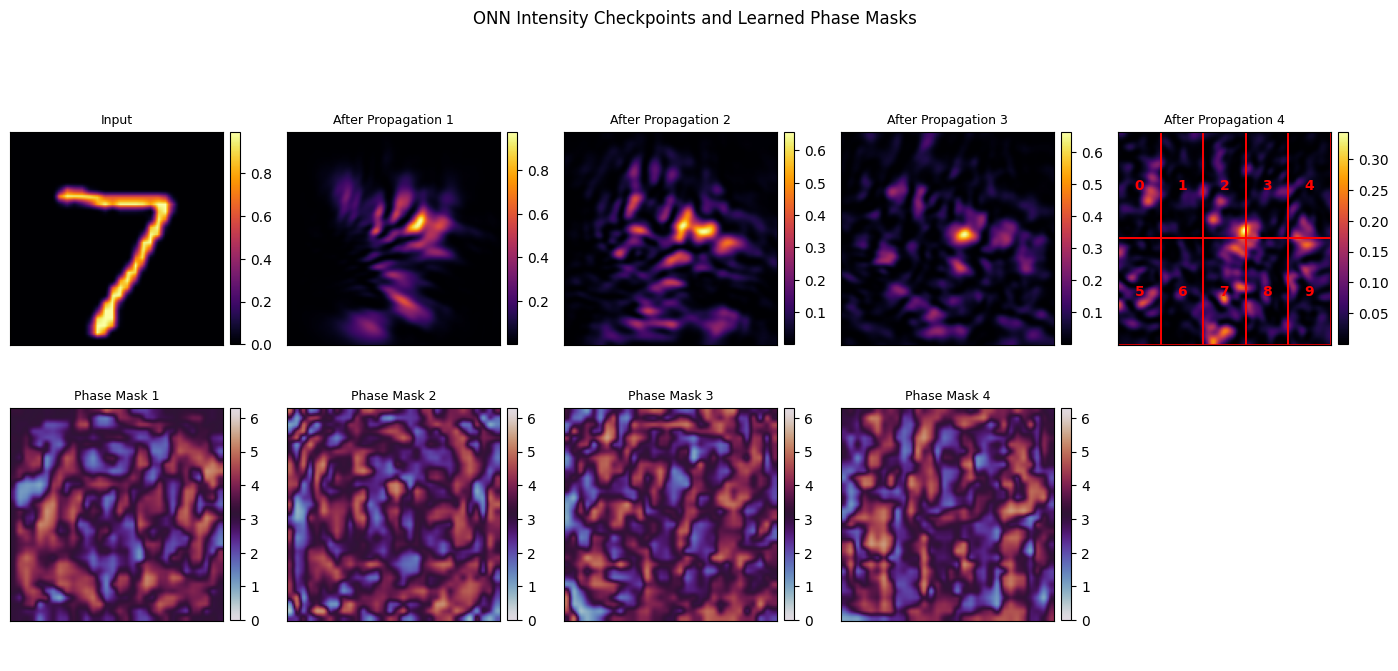

and attach IntensityMonitor layers so the field evolution can be visualized after training. The
final DetectorArray has 10 cells arranged as 2×5, one for each digit class.
The trainable parameters live on a lower-resolution latent grid and are bilinearly upsampled before being converted into physical phase masks.
jax.config.update("jax_platform_name", DEVICE)
selected_device = jax.devices()[0]
jax.config.update("jax_default_device", selected_device)
print(
"device="
f"{selected_device.platform} kind={getattr(selected_device, 'device_kind', 'unknown')}"
)
input_grid = fx.Grid.from_extent(nx=28, ny=28, dx_um=1.0, dy_um=1.0)
spectrum = fx.Spectrum.from_scalar(1.55)
propagator = fx.plan_propagation(
mode="auto",
grid=input_grid,
spectrum=spectrum,
distance_um=DISTANCE_UM,
nyquist_factor=NYQUIST_FACTOR,
min_padding_factor=2.0,
)
work_grid = propagator.precomputed_grid or input_grid
mask_nx = work_grid.nx // PHASE_MASK_DOWNSAMPLE
mask_ny = work_grid.ny // PHASE_MASK_DOWNSAMPLE
mask_grid = fx.Grid.from_extent(
nx=mask_nx,
ny=mask_ny,
dx_um=(work_grid.nx * work_grid.dx_um) / mask_nx,
dy_um=(work_grid.ny * work_grid.dy_um) / mask_ny,
)
detector_grid = fx.Grid.from_extent(
nx=5,
ny=2,
dx_um=(work_grid.nx * work_grid.dx_um) / 5.0,
dy_um=(work_grid.ny * work_grid.dy_um) / 2.0,
)
detector_array = fx.DetectorArray(
detector_grid=detector_grid,
)
def build_module(raw_params: jnp.ndarray) -> fx.OpticalModule:
layers = [fx.IntensityMonitor(sum_wavelengths=True, output_domain="spatial")]
for i in range(raw_params.shape[0]):
upsampled_latent = jax.image.resize(
raw_params[i],
shape=(work_grid.ny, work_grid.nx),
method="linear",
)
bounded_phase = 2.0 * jnp.pi * jax.nn.sigmoid(upsampled_latent)
layers.append(fx.PhaseMask(phase_map_rad=bounded_phase))
layers.append(propagator)
layers.append(fx.IntensityMonitor(sum_wavelengths=True, output_domain="spatial"))
return fx.OpticalModule(layers=tuple(layers), sensor=detector_array)
x_train, y_train, x_test, y_test = load_mnist(DATA_PATH)
x_train = x_train[:TRAIN_SAMPLES]
y_train = y_train[:TRAIN_SAMPLES]
x_test = x_test[:TEST_SAMPLES]
y_test = y_test[:TEST_SAMPLES]
x_train = resize_images_to_grid(x_train, work_grid)
x_test = resize_images_to_grid(x_test, work_grid)
key = jax.random.PRNGKey(SEED)
phase_params = 0.05 * jax.random.normal(
key,
(NUM_PHASE_LAYERS, mask_grid.ny, mask_grid.nx),
dtype=jnp.float32,
)
device=cpu kind=cpu
